General Settings / Tenant Configuration

Configuring the Amazon Transcribe service connection depends on whether the QMS system is a multi-tenant or non-tenant system. On a non-tenant system, the transcription services are configured under the General Settings section of the Administration area. On a multi-tenant system, the transcription services are configured for each Tenant individually under the Tenant section of the Administration area.

First, you will want to check the Enable Transcription checkbox and select the "Azure Speech-to-Text" Transcription Engine Type.

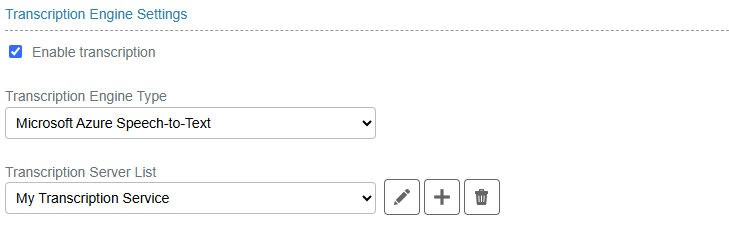

Fig 30

Figure 30: Azure Speech to Text Service Configuration

Next to the Azure Speech-to-Text Server List, are an Edit and Add button. Clicking either of these will pop up a new window where the Azure Speech-to-Text Server details can be configured.

  1. Transcription service name – enter a name of your choice to designate this transcription engine.

  2. Service Resource Location – enter the location of the Azure Speech Service.

  3. Speech Service Name – enter the name of the Azure Speech Service.

  4. Speech Service Key – enter the service key for the Azure Speech Service.

  5. Storage Connection String – enter the connection string used to connect to the Azure Storage Account. This can be found in Access Keys tab for the storage account on Azure web client.

  6. Blob Storage Container – enter the name of the Azure Blob container that will be used for uploading source audio files and holding transcription results files.

  7. Test Connection – click the button to test the settings entered in the above fields.

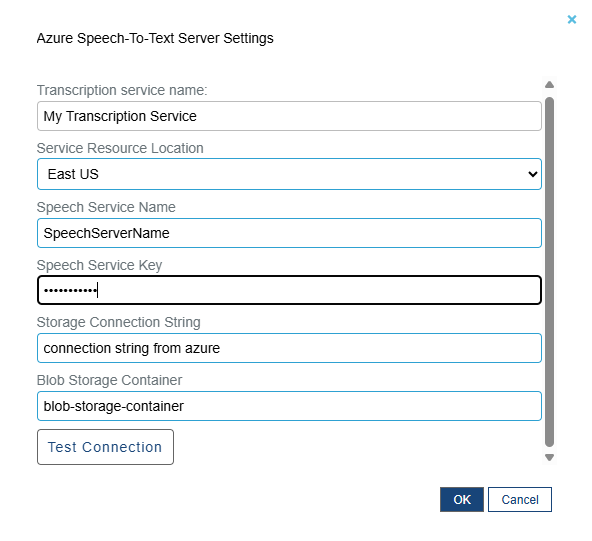

Fig 31

Figure 31: Azure Speech-to-Text Server Settings
