QMS Architecture

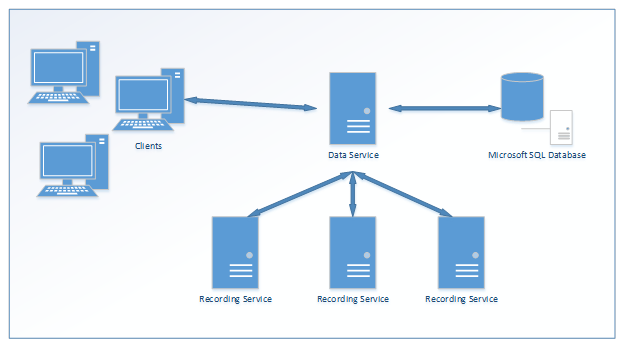

1 QMS Arch

The Enghouse Interactive Quality Management Suite (QMS) is a distributed call recording system consisting of a collection of services which can be deployed in many configurations. In most deployments, a QMS system contains four different components:

  • A QMS Data service

  • One or more QMS Call Recording services

  • The QMS Client website, hosted within a web server

  • A Microsoft SQL or PostGres database

High Availability Configuration

When running in a high-availability configuration, the Enghouse Interactive Quality Management Suite consists of the following components:

  • Up to two instances of the QMS Data service, running as a redundant pair

  • Up to two instances of the QMS Call Recording service for each instance that would normally run in a non-redundant configuration

  • One or more instances of the QMS Client website, hosted within a web server

  • A Microsoft SQL database running in a highly available SQL instance utilizing either merge replication or SQL AlwaysOn High Availability

For more information on QMS high availability deployments, please refer to the QMS High Availability Deployment Guide.
